How to Offload Media for Vanilla WordPress

Create a ticket to SRE team for Credentials and Set Credentials on Server Level.

• Request the following:
  • Access Key ID
  • Secret Access Key
  • Bucket Name
  • Region (default is wnam)

Download and install the Amazon S3 and CloudFront Pro Plugin.

• Download the Amazon S3 and CloudFront Pro plugin  and upload it to your WordPress plugins directory.
• Activate the plugin through the ‘Plugins’ menu in WordPress.
• Activate the license key provided. (Note: License key is company property and should not be shared outside the company.)

Configure the offload media Object Prefix

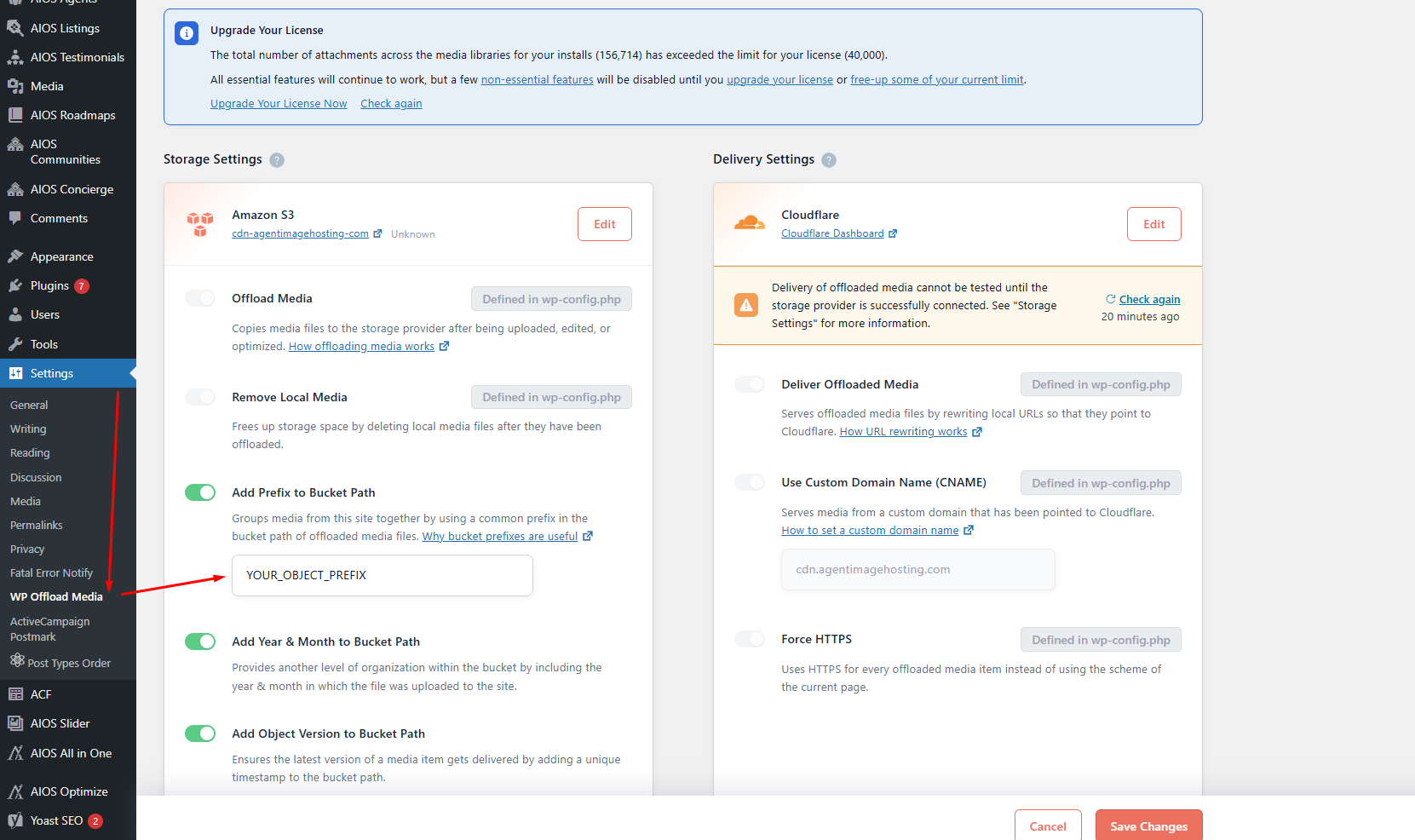

• Go to the Settings WP offload Media you will see “Add Prefix to Bucket Path”.
• Set the prefix to Object Prefix SRE Provided.

Download and install AIOS Offload Media Tweak R2 plugin

• Download the AIOS Offload Media Tweak R2 plugin  and upload it to your WordPress plugins directory.
• Activate the plugin through the ‘Plugins’ menu in WordPress.

Start offloading media database point to cdn

Add entries to wp_as3cf_items table

Within your project directory, make a temporary file and copy snippet below (offload.sql). Do not commit this file

• Replace <region> with s3 bucket region.
• Replace <bucket> with s3 bucket name.
• Replace all <project_slug> with your project slug.

Import using wp cli:

wp db import offload.sql

Check wp_as3cf_items table entries to have the correct paths.

    INSERT IGNORE INTO wp_as3cf_items (
        provider,
        region,
        bucket,
        path,
        original_path,
        is_private,
        source_type,
        source_id,
        source_path,
        original_source_path,
        extra_info,
        originator,
        is_verified
    )
    SELECT
        'aws',
        '<region>',
        '<bucket>',
        concat('<project_slug>/', pm.meta_value) AS path,
        concat('<project_slug>/', pm.meta_value) AS original_path,
        0,
        'media-library',
        p.id AS source_id,
        pm.meta_value AS source_path,
        pm.meta_value AS original_source_path,
        'a:2:{s:13:"private_sizes";a:0:{}s:14:"private_prefix";s:0:"";}',
        0,
        1
    FROM
        `wp_posts` p
        LEFT JOIN `wp_postmeta` pm ON pm.post_id = p.id AND pm.meta_key = '_wp_attached_file'
    WHERE
        p.post_type = 'attachment';
